BINGO CONSOLES

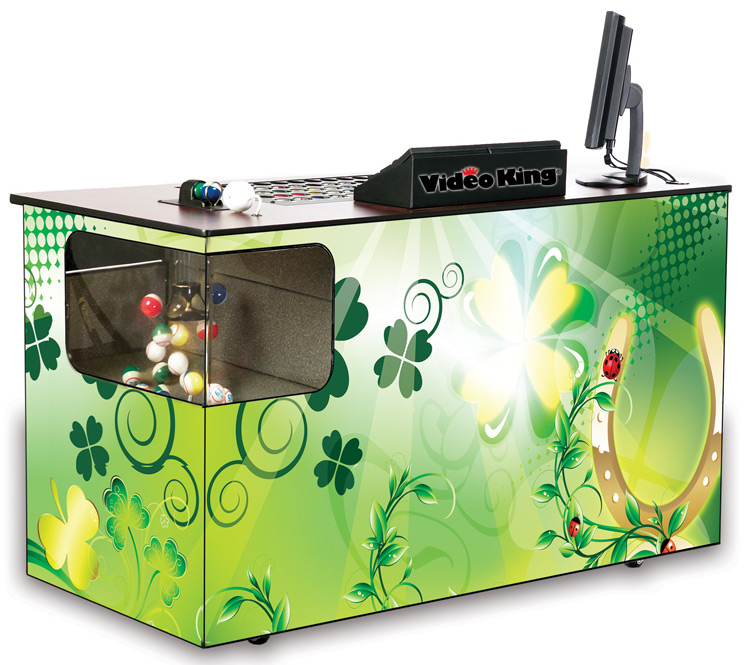

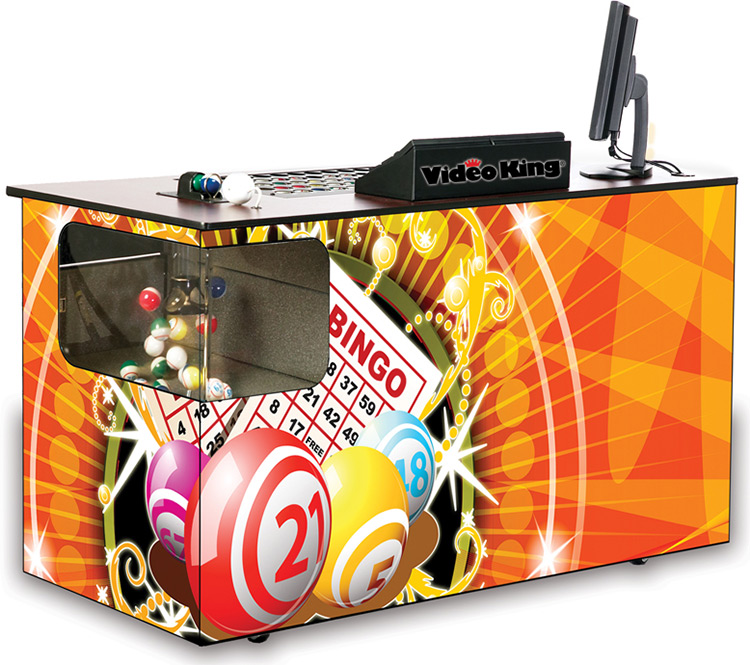

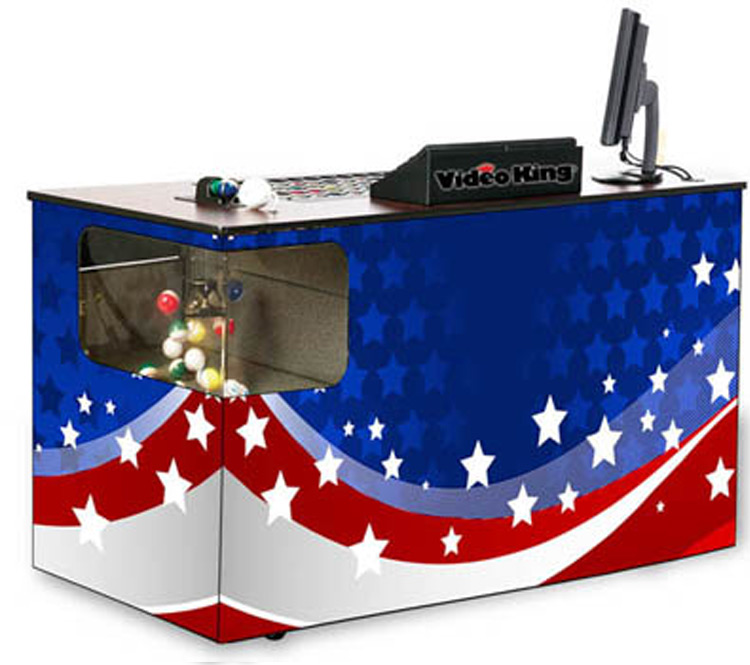

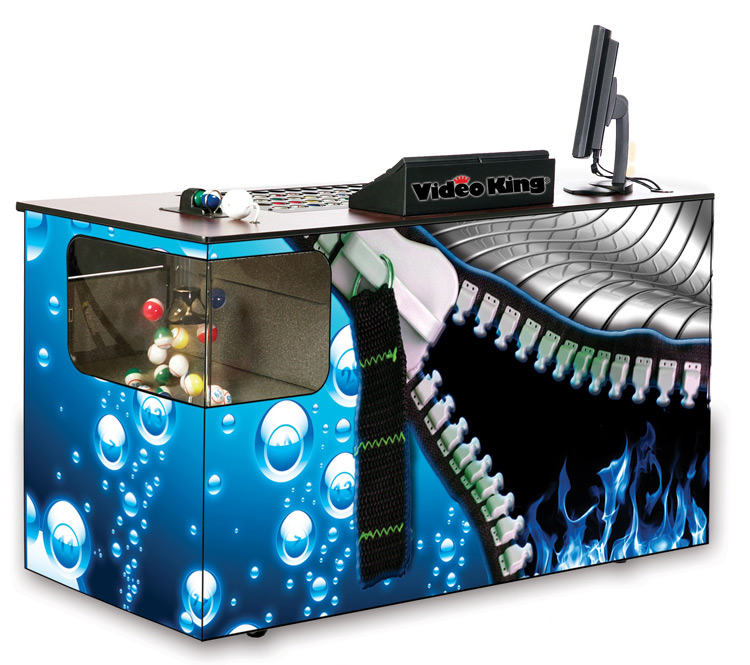

PowerPlay 500 Console

Video King’s PowerPlay 500™ is the most affordable, full-featured bingo console on the market.



Standard Features

  • 15-inch monitor with built-in speakers.
  • USB keyboard/mouse.
  • Standard PC technology.
  • Locking cabinets.
  •  Windows 7® Operating System.
  • Removable motor and base for easy maintenance.
  • NTSC camera for live ball image.
  • Low sound emissions.
  • Ability to verify all known perms.
  • Ability to save and store sessions.
  • Programmable timer with visual and audible signals.
  • Automatic prize calculations when multiple winners.
  • Compatible with Video King’s 90-number flashboard.

click image for larger view

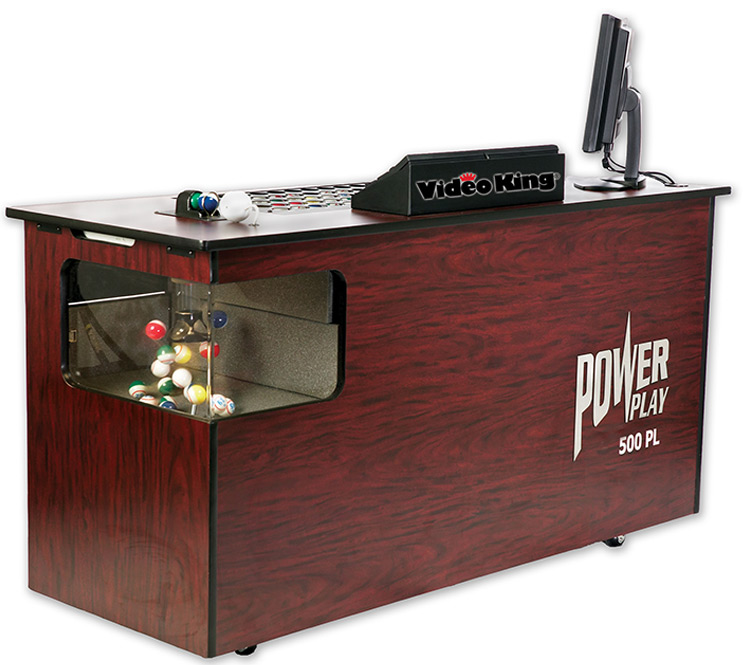

Description: PowerPlay 500 PL™

  • Shipping Weight: 330 pounds
  • Shipping Dimensions: 69” L x 31” W x 47” H
  • Dimensions: 62” L x 24” W x 33” H

Software Features

  • Compatible with the OMNI™ bingo management system, the e-BOS™ gaming systems, including our fixed-base systems and full line of handheld bingo devices.
  • Compatible with Bingo Racing software.
  • Integrated video flashboard capability.
  • Integrated presentation software for “in-hall” advertising.
  • Single “F” key operation for ease of use and speed of operation.
  • Advanced Windows®-based PowerEdit game program editor.
  • Digital image picture-in-picture for live ball display on the game screen.
  • Easy-to-follow, on-screen directions and menus.
  • Remote access software for program changes and troubleshooting.
  • Full “system-restore” software.
  • Built-in verification of known bingo perms.
  • Supports complex pattern definitions, including multi-level and multi-card sheet patterns.
  • Compatible With Video King’s TriplePlay™ hi-deifinition flashboards.
  • Password protected for added security.

Technical Features

  • Two “B” Data outputs. Two Payout Data outputs.
  • Two Bonanza Bingo “R” Data outputs.
  • Supports Video King “B” Data Flashboards, including our 4,000, 6000, 7000, 7500, 7600 and Multimedia Flashboard Series.
  • One parallel port for connection to approved printers.
  • One RJ11 modem jack for remote service dial-up connection.
  • One JR45 Ethernet port for connection to local area network.
  • Two RCA line level audio inputs for audio mixing and multimedia capabilities.
  • Two RCA line level outputs for connection to hall audio system or monitor speakers.
  • One 1/4 inch microphone input jack for caller audio equipment.
  • One ATI video graphics card for crystal clear caller and hall video displays.
  • One NTSC video output for connection to hall video equipment displaying live ball image and switching to card verification image.
  • Fluorescent light ball chamber for maximum clarity and ball action view.
  • Multiple accessory, 120-volt AC outlets.

Optional Features

  • “A” Data signal translator for connection to “A” Data style flashboards.
  • Software controlled video switch for enhanced multimedia control.
  • 220-volt transformer.
  • Touch-screen interface.
  • Black cabinet.
  • Random number generator.
  • RF modulator.
  • Available in Models: 500, 502,503, 504.
